Q:

(Postfix notation) Postfix notation is a way of writing expressions without using parentheses

0

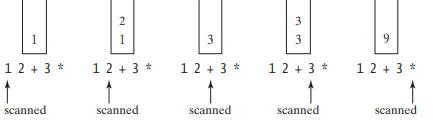

(Postfix notation) Postfix notation is a way of writing expressions without using parentheses. For example, the expression (1 + 2) * 3 would be written as 1 2 + 3 *. A postfix expression is evaluated using a stack. Scan a postfix expression from left to right. A variable or constant is pushed into the stack. When an operator is encountered, apply the operator with the top two operands in the stack and replace the two operands with the result. The following diagram shows how to evaluate 1 2 +  3 *.

Write a program to evaluate postfix expressions. Pass the expression as a command-line argument in one string.

All Answers

need an explanation for this answer? contact us directly to get an explanation for this answer

/*********************************************************************************
* (Postfix notation) Postfix notation is a way of writing expressions without    *
* using parentheses. For example, the expression (1 + 2) * 3 would be written as *
* 1 2 + 3 *. A postfix expression is evaluated using a stack. Scan a postfix     *
* expression from left to right. A variable or constant is pushed into the       *
* stack. When an operator is encountered, apply the operator with the top two    *
* operands in the stack and replace the two operands with the result. The        *
* following diagram shows how to evaluate 1 2 + 3 *.                             *
*                                                                                *
* Write a program to evaluate postfix expressions. Pass the expression as a      *
* command-line argument in one string.                                           *
*********************************************************************************/
import java.util.*;

public class Exercise_20_14 {
	public static void main(String[] args) {
		// Check number of command-line arguments
		if (args.length != 1) {
			System.out.println("Usage: Java Exercise_20_14 "Expressions"");
			System.exit(1);
		}

		try {
			System.out.println(evaluateExpression(args[0]));
		}
		catch (Exception ex) {
			System.out.println("Wrong expression: " + args[0]);
		}
	}

	/** Evaluate a postfix notation expression */
	public static int evaluateExpression(
			String expression) throws Exception {
		// Create operandStack to store operands
		Stack<Integer> operandStack = new Stack<>();

		expression = insertBlanks(expression);

		// Extract operands and operators
		String[] tokens = expression.split(" ");

		// Scan tokens
		for (String token: tokens) {
			if (token.length() == 0) // Blank space
				continue; // Back to the while loop to extract the next token
			else if (token.charAt(0) == '+' || token.charAt(0) == '-'||
						token.charAt(0) == '/' || token.charAt(0) == '*') {
					// Process all operands in the top of the stack
					processAnOperator(operandStack, token.charAt(0));
			}
			else if (Character.isDigit(token.charAt(0))){
				// Push an operand into the stack
				operandStack.push(Integer.parseInt(token));
			}
			else
				throw new Exception("Wrong expression: ");
		}

		// Return the result
		return operandStack.pop();
	}

	/** Process one operator: Apply an operator
	  * to the operands in the stack */
	public static void processAnOperator(
			Stack<Integer> operandStack, char operator) {
		int op1 = operandStack.pop();
		int op2 = operandStack.pop();

		switch (operator) {
			case '+': operandStack.push(op2 + op1); break;
			case '-': operandStack.push(op2 - op1); break;
			case '/': operandStack.push(op2 / op1); break;
			case '*': operandStack.push(op2 * op1);
		}
	}

	/** Inserts blanks around +, -, /, and * */
	public static String insertBlanks(String s) {
		String result = "";

		for (int i = 0; i < s.length(); i++) {
			if (s.charAt(i) == '+' || s.charAt(i) == '-' ||
				 s.charAt(i) == '/' || s.charAt(i) == '*')
				result += " " + s.charAt(i) + " ";
			else
				result += s.charAt(i);
		}

		return result;
	}
}
