(Combine colliding bouncing balls) The example in Section 20.7 displays multiple bouncing balls

0

(Combine colliding bouncing balls) The example in Section 20.7 displays multiple bouncing balls. Extend the example to detect collisions. Once two balls collide, remove the later ball that was added to the pane and add its radius to the other ball, as shown in Figure 20.17b. Use the Suspend button to suspend the animation and the Resume button to resume the animation. Add a mouse pressed handler that removes a ball when the mouse is pressed on the ball.

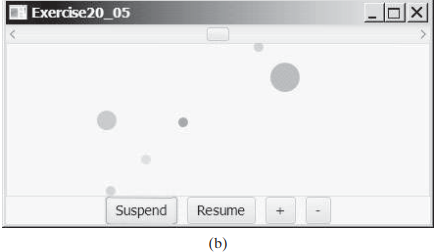

 (b) The colliding balls are combined.

All Answers

need an explanation for this answer? contact us directly to get an explanation for this answer

/***********************************************************************************
* (Combine colliding bouncing balls) The example in Section 20.7 displays          *
* multiple bouncing balls. Extend the example to detect collisions. Once two balls *
* collide, remove the later ball that was added to the pane and add its radius to  *
* the other ball, as shown in Figure 20.17b. Use the Suspend button to suspend     *
* the animation and the Resume button to resume the animation. Add a mouse         *
* pressed handler that removes a ball when the mouse is pressed on the ball.       *
***********************************************************************************/
import javafx.animation.KeyFrame;
import javafx.animation.Timeline;
import javafx.application.Application;
import javafx.beans.property.DoubleProperty;
import javafx.geometry.Pos;
import javafx.scene.Node;
import javafx.stage.Stage;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.ScrollBar;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.util.Duration;
import javafx.collections.ObservableList;
import java.util.*;

public class Exercise_20_05 extends Application {
	@Override // Override the start method in the Application class
	public void start(Stage primaryStage) {
		MultipleBallPane ballPane = new MultipleBallPane();
		ballPane.setStyle("-fx-border-color: yellow");

		// Create four buttons
		Button btSuspend = new Button("Suspend");
		Button btResume = new Button("Resume");
		Button btAdd = new Button("+");
		Button btSubtract = new Button("-");
		HBox hBox = new HBox(10);
		hBox.getChildren().addAll(
			btSuspend, btResume, btAdd, btSubtract);
		hBox.setAlignment(Pos.CENTER);

		// Add or remove a ball
		btAdd.setOnAction(e -> ballPane.add());
		btSubtract.setOnAction(e -> ballPane.subtract());
		ballPane.setOnMousePressed(e -> {
			for (Node node: ballPane.getChildren()) {
				Ball ball = (Ball)node;
				if (ball.contains(e.getX(), e.getY())) {
					ballPane.getChildren().remove(ball);
				}
			}
		});

		// Pause and resume animation
		btSuspend.setOnAction(e -> ballPane.pause());
		btResume.setOnAction(e -> ballPane.play());

		// Use a scroll bar to control animation speed
		ScrollBar sbSpeed = new ScrollBar();
		sbSpeed.setMax(20);
		sbSpeed.setValue(10);
		ballPane.rateProperty().bind(sbSpeed.valueProperty());

		// Create a border pane
		BorderPane pane = new BorderPane();
		pane.setCenter(ballPane);
		pane.setTop(sbSpeed);
		pane.setBottom(hBox);

		// Create a scene and place the in the stage
		Scene scene = new Scene(pane, 350, 200);
		primaryStage.setTitle("Exercise_20_05"); // Set the stage title
		primaryStage.setScene(scene); // Place the scene in the stage
		primaryStage.show(); // Display the stage
	}

	private class MultipleBallPane extends Pane {
		private Timeline animation;

		public MultipleBallPane() {
			// Create an animation for moving the ball
			animation = new Timeline(
				new KeyFrame(Duration.millis(50), e -> moveBall()));
			animation.setCycleCount(Timeline.INDEFINITE);
			animation.play(); // Start animation
		}

		public void add() {
			Color color = new Color(Math.random(),
				Math.random(), Math.random(), 0.5);
			getChildren().add(new Ball(30, 30, 5, color));
		}

		public void subtract() {
			if (getChildren().size() > 0) {
				getChildren().remove(getChildren().size() - 1);
			}
		}

		public void play() {
			animation.play();
		}

		public void pause() {
			animation.pause();
		}

		public void increaseSpeed() {
			animation.setRate(animation.getRate() + 0.1);
		}

		public void decreaseSpeed() {
			animation.setRate(
				animation.getRate() > 0 ? animation.getRate() - 0.1 : 0);
		}

		public DoubleProperty rateProperty() {
			return animation.rateProperty();
		}

		protected void moveBall() {
			for (Node node: this.getChildren()) {
				Ball ball = (Ball)node;
				// Check boundaries
				if (ball.getCenterX() < ball.getRadius() ||
					 ball.getCenterX() > getWidth() - ball.getRadius()) {
					ball.dx *= -1; // Change ball move direction
				}
				if (ball.getCenterY() < ball.getRadius() ||
					 ball.getCenterY() > getHeight() - ball.getRadius()) {
					ball.dy *= -1; // Change ball move direction
				}

				// Adjust ball position
				ball.setCenterX(ball.dx + ball.getCenterX());
				ball.setCenterY(ball.dy + ball.getCenterY());

				// Check if balls collide
				ArrayList<Node> list = new ArrayList<>(this.getChildren());
				for (int i = getChildren().indexOf(node) + 1;
					  i < list.size(); i++) {
					Ball nextBall = (Ball)list.get(i);
					if (intersects(ball, nextBall)) {
						// Remove the later ball that was added to
						// pane and add its radius to the other ball
						ball.setRadius(ball.getRadius() +
							nextBall.getRadius());
						getChildren().remove(nextBall);
					}
				}
			}
		}

		/** Returns true if circles inIntersect */
		private boolean intersects(Ball ball, Ball nextBall) {
			return Math.sqrt(Math.pow(ball.getCenterX() - nextBall.getCenterX(), 2) +
					 Math.pow(ball.getCenterY() - nextBall.getCenterY(), 2))
					 <= ball.getRadius() + nextBall.getRadius();
		}
	}

	class Ball extends Circle {
		private double dx = 1, dy = 1;

		Ball(double x, double y, double radius, Color color) {
			super(x, y, radius);
			setFill(color); // Set ball color
		}
	}
}
