(Game: bean machine) The bean machine, also known as a quincunx or the Galton box, is a device for statistics experiments named after English scientist Sir Francis Galton

0

(Game: bean machine) The bean machine, also known as a quincunx or the Galton box, is a device for statistics experiments named after English scientist Sir Francis Galton. It consists of an upright board with evenly spaced nails (or pegs) in a triangular form, as shown in Figure 7.13.

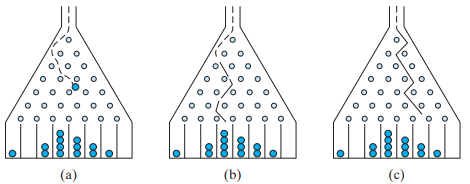

FIGURE 7.13 Each ball takes a random path and falls into a slot.

Balls are dropped from the opening of the board. Every time a ball hits a nail, it has a 50% chance of falling to the left or to the right. The piles of balls are accumulated in the slots at the bottom of the board.

Write a program that simulates the bean machine. Your program should prompt the user to enter the number of the balls and the number of the slots in the machine. Simulate the falling of each ball by printing its path. For example, the path for the ball in Figure 7.13b is LLRRLLR and the path for the ball in Figure 7.13c is  RLRRLRR. Display the final buildup of the balls in the slots in a histogram. Here is a sample run of the program:

Output:

Enter the number of balls to drop: 5
Enter the number of slots in the bean machine: 8
LRLRLRR
RRLLLRR
LLRLLRR
RRLLLLL
LRLRRLR
O
O
OOO

(Hint: Create an array named slots. Each element in slots stores the number of balls in a slot. Each ball falls into a slot via a path. The number of Rs in a path is the position of the slot where the ball falls. For example, for the path LRLRLRR, the ball falls into slots[4], and for the path is RRLLLLL, the ball falls into slots[2].)

All Answers

need an explanation for this answer? contact us directly to get an explanation for this answer

import java.util.Scanner;

public class Exercise_07_21 {
	/** Main method */
	public static void main(String[] args) {
		Scanner input = new Scanner(System.in); // Create a Scanner

		// Prompt the user to enter the number of the balls
		System.out.print("Enter the number of balls to drop: ");
		int drops = input.nextInt();

		// Prompt the user to enter the number of slots
		System.out.print("Enter the number of slots in the bean machine: ");
		int nails = input.nextInt() - 1;

		String[] paths = new String[nails * drops]; // Path of each ball
		int[] balls = new int[nails]; // The slot of each ball

		int numberOfRs = 0; // The number of Rs in a path
		for (int i = 0; i < paths.length; i++) {
			paths[i] = getRandomPath();

			// If if ball path is right increament numberOfRs
			if (paths[i] == "R") {
				numberOfRs++;
			}

			// Count the number of balls in each slot
			if ((i + 1) % nails == 0) {
				balls[numberOfRs]++;
				numberOfRs = 0;
			}
		}

		// Display the path of the balls
		print(paths, nails);

		// Display the the final buildup of the balls in the slots in a histogram
		print(balls);

	}

	/** getRandomPath returns the string L or R randomly */
	public static String getRandomPath() {
		if ((int)(Math.random() * 2) == 0)
			return "L";
		else
			return "R";
	}

	/** print displays the elements the list n elements per row */
	public static void print(String[] list, int n) {
		System.out.println();
		for (int i = 0; i < list.length; i++)
			System.out.print(((i + 1) % n == 0) ? list[i] + "\n" : list[i]);
	}

	/** print overloaded displays a histogram of the data in a list */
	public static void print(int[] list) {
		int max = max(list);

		while (max > 0) {
			System.out.println();
			for (int i = 0; i < list.length; i++) {
				if (list[i] >= max) {
					System.out.print("O");
				}
				else
					System.out.print(" ");
			}
			max--;
		}
		System.out.println();
	}

	/** max returns the largest integer in a list */
	public static int max(int[] list) {
		int max = list[0];

		for (int i = 1; i < list.length; i++) {
			if (list[i] > max)
				max = list[i];
		}
		return max;
	}
}

need an explanation for this answer? contact us directly to get an explanation for this answer
